Description

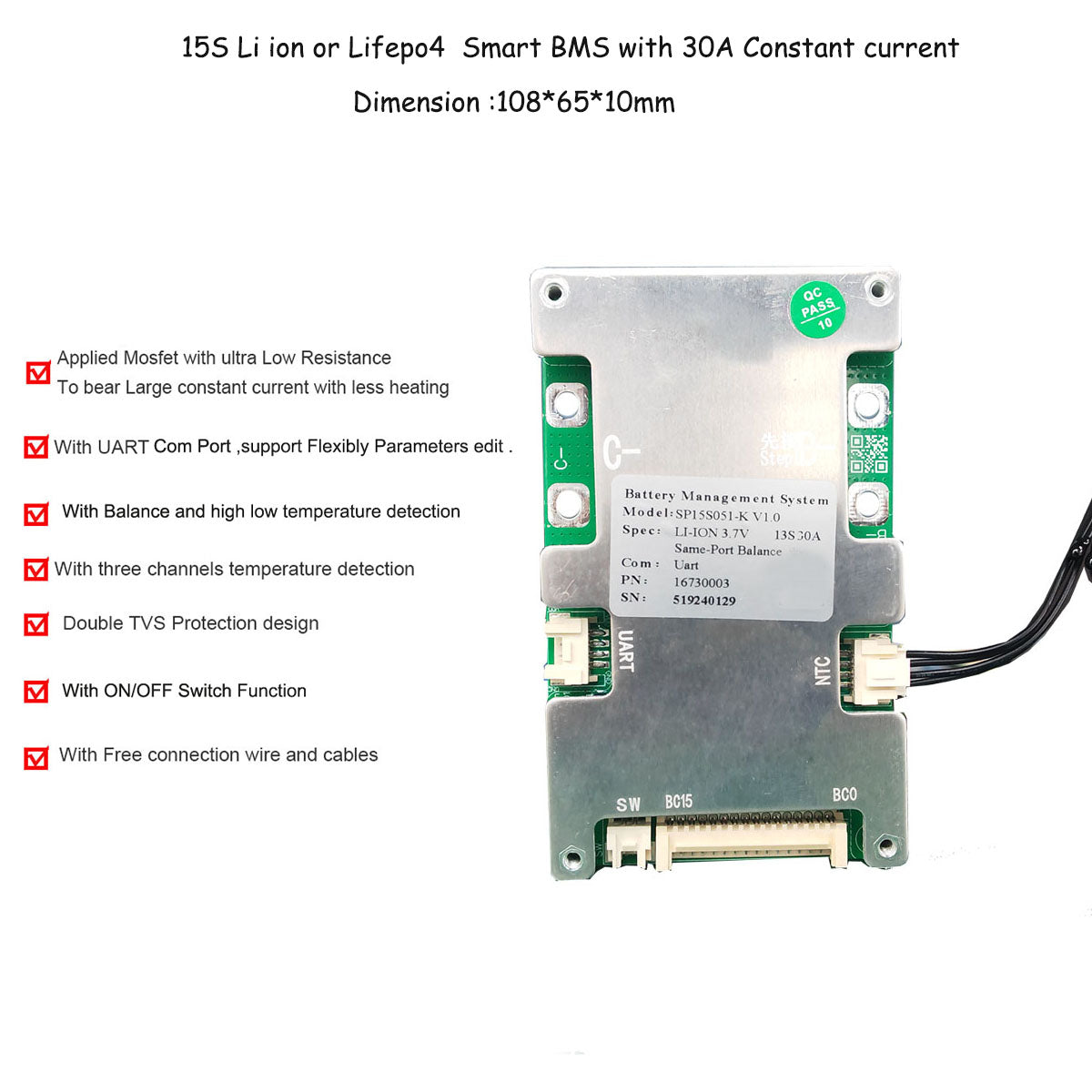

x1) Application:this smart BMS can work for 12S 13S 14S 15S Lithium ion or Lifepo4 Battery ,client can choose based on your battery chemistry features
2) Current : constant current of this version BMS can be made with 20A to 60A in accoridng to the different demand

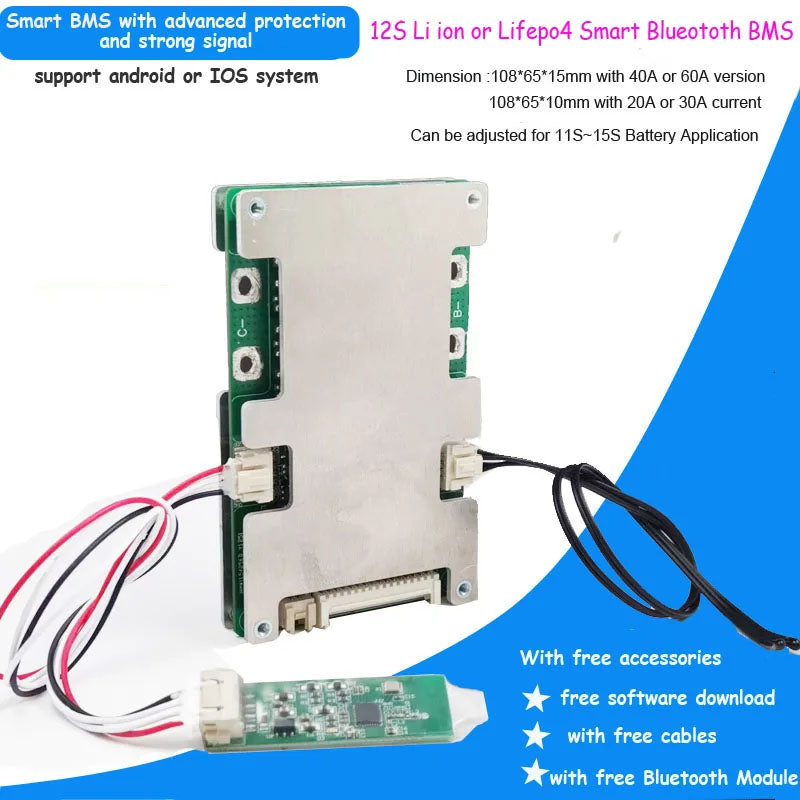

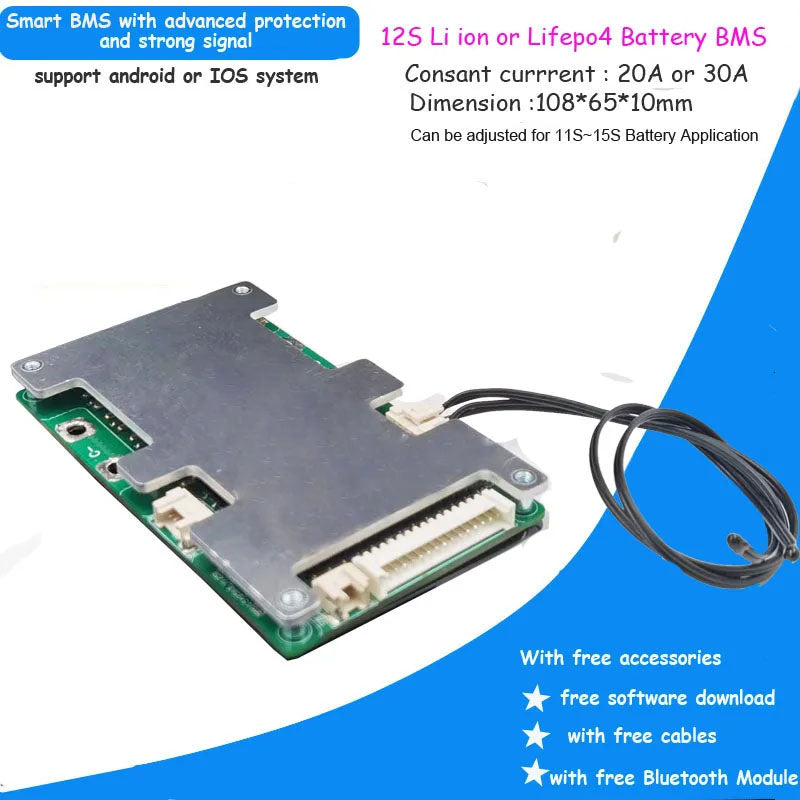

3) Dimension: :Max 108*65*10mm (for less than 30A current ,and Max108*65*15mm for more than 30A Current
4) Our BMS will include a free connection cable with connector and with a Bluetooth Communication module . client can choose the PC Communication module separately based on your demand by selecting it from the dropdown list
4) Functions : except basic protection function , this BMS has ON/OFF switch ,PC and APP communication function.
5) Communication type :UART
4) Functions : except basic protection function , this BMS has ON/OFF switch ,PC and APP communication function.
5) Communication type :UART
6) With three temperature detection channels for this BMS

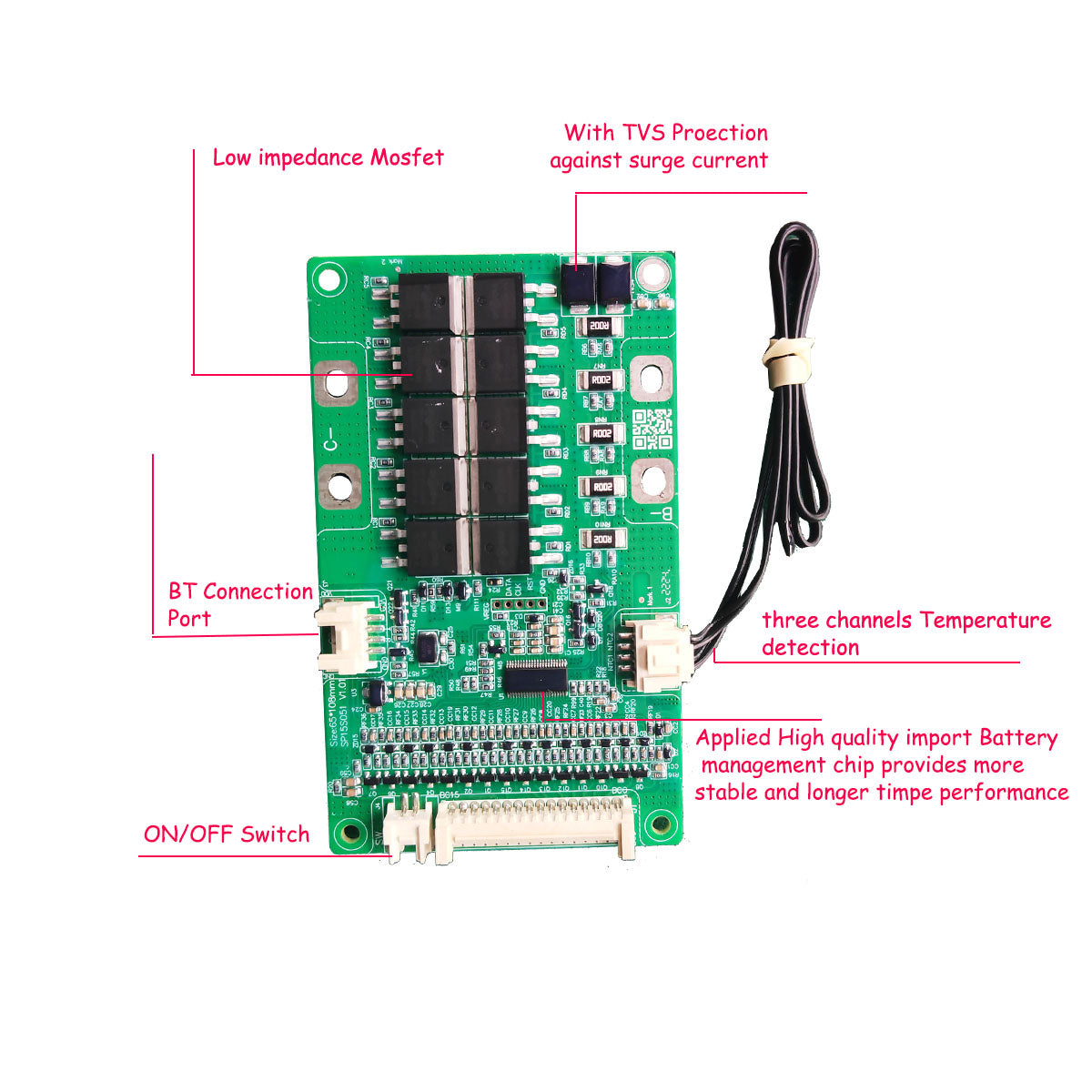

7) Applied with High End TI Management Chip and Separate MCU provide more stable working performance
with our adroid APP , you can set all parameters well without problems for different application .
PC software pages
Notice of connection :
A. Firstly ,Please connect bold wires from B- port of the BMS to the negative port of the battery pack .(B- wire should be as short as possible ) ,then connect these voltage detection wires (Please take off these wires from the BMS before connecting these wires to the battery to avoid any connection mistakes )
B. Second ,Please start connect these balance wires to the Battery system from BC0 ,Black thin wire should be connected to the battery negative , and the second wire -white wire BC1 should be connect to the positive port of the first series cell . BC2 should connect to the positive port of second series cell ,and BC3 wire to the third cell’s positive ….connection in this way in order one by one till to the last cell postive port
C. Third . After connection of these balance wires finished , please measure connector voltage from each Neighbouring wires ,the voltage between each neighbouring wires for Li ion battery should be less than 4V and for Lifepo4 Battery should be less than 3.5V ,after confirmation of these wires connection order , you can plug cable connector into the BMS .–wrong connection order will damage our BMS surely . please be carefully with this step .
D. Finally , connect C- wire as negative of charge and discharge , B+ wire as positive of charge and discharge , those wires should
use bold wire to make connection for large current distribution purpose . then please comparing the voltage from the BMS and voltage directly from the Battery to see if they are the same or not . if they are the same value . your connection is correct , otherwise terrible things will happend !!!
