xIntroduction and Features：

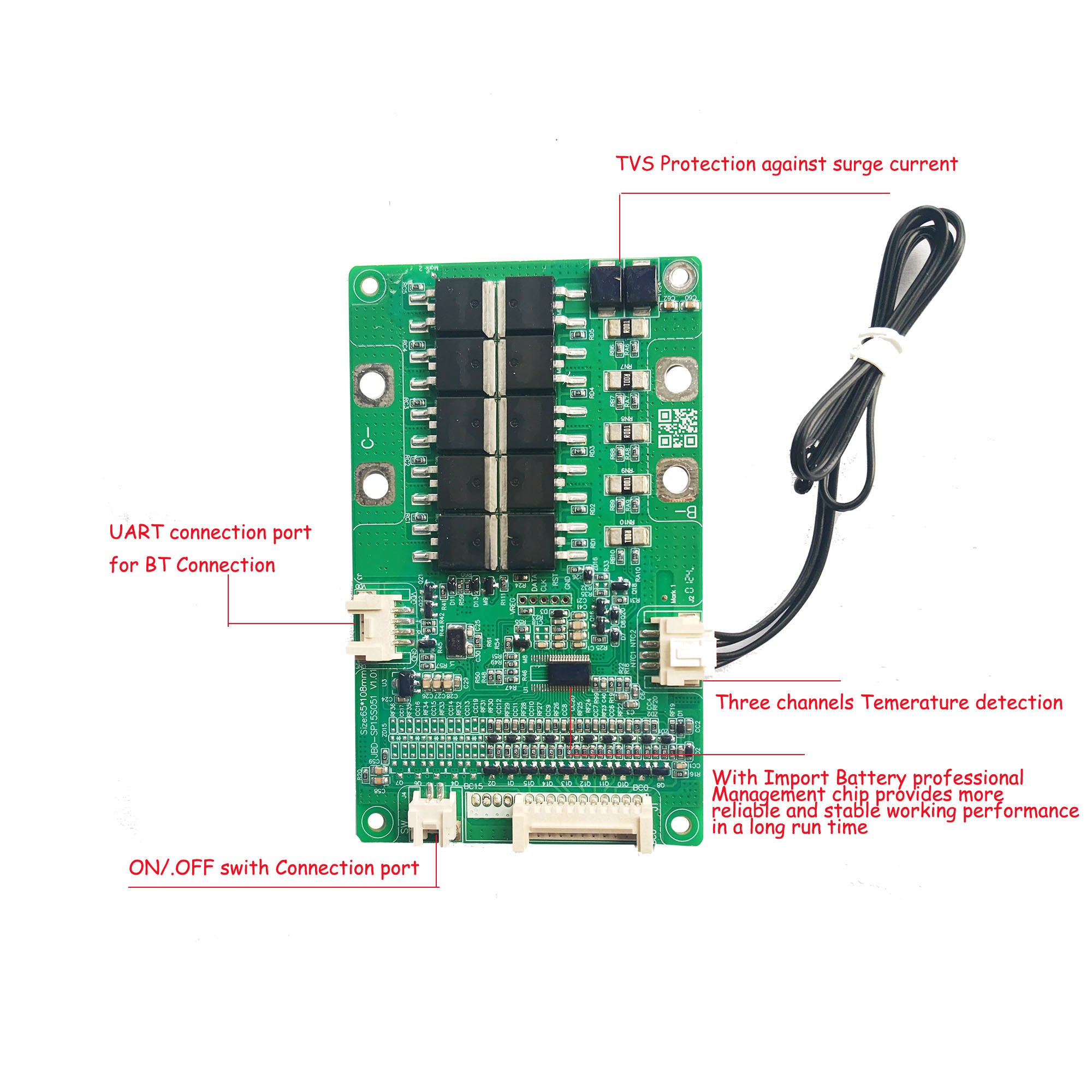

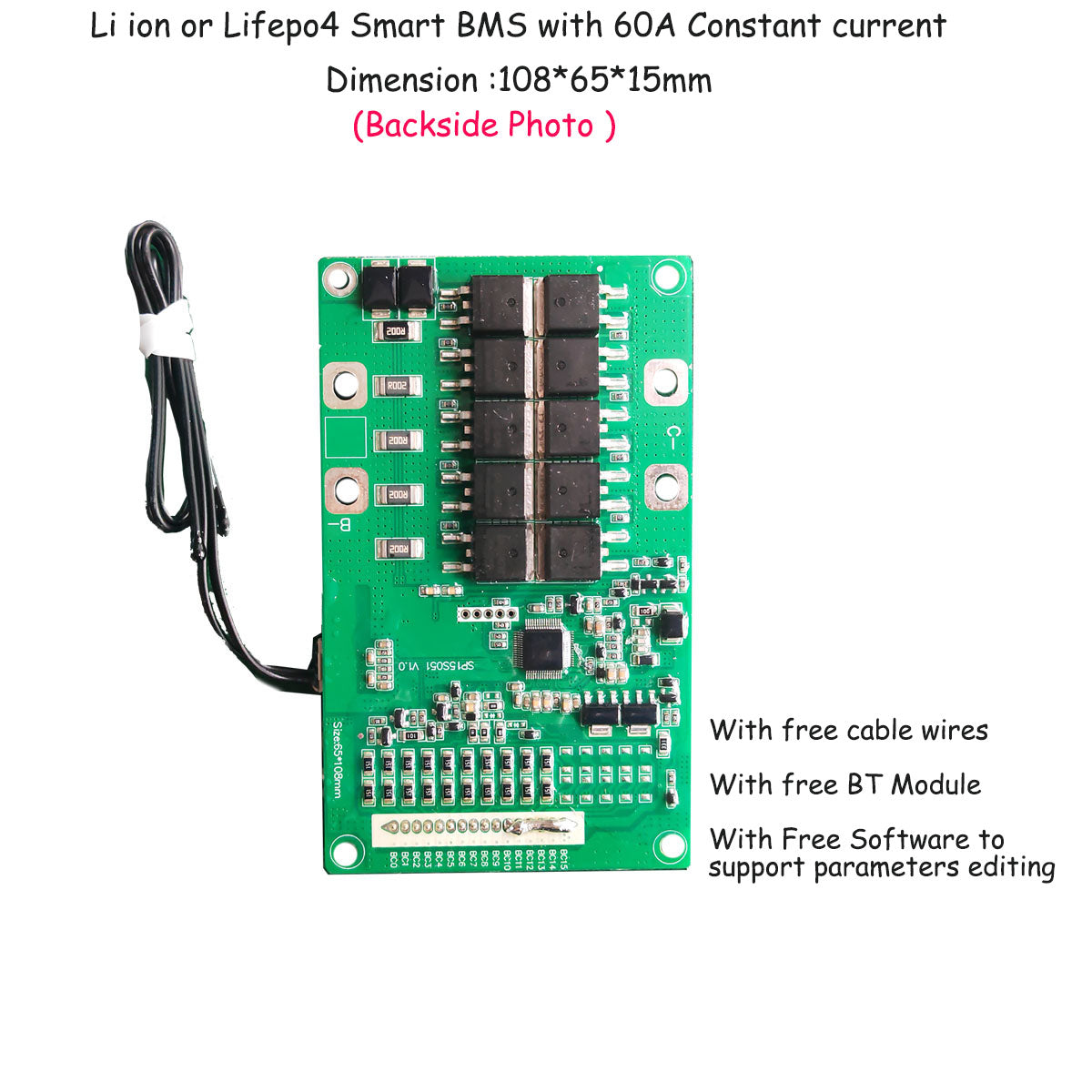

This is a Smart protection board specially designed for battery packs of.It can be applied to lithium batteries with different chemical properties, such as lithium ion, Li-polymer. Lithium iron phosphate, etc. The protection board has strong loading capacity and the maximum continuous discharge current can reach 30A to 60A.

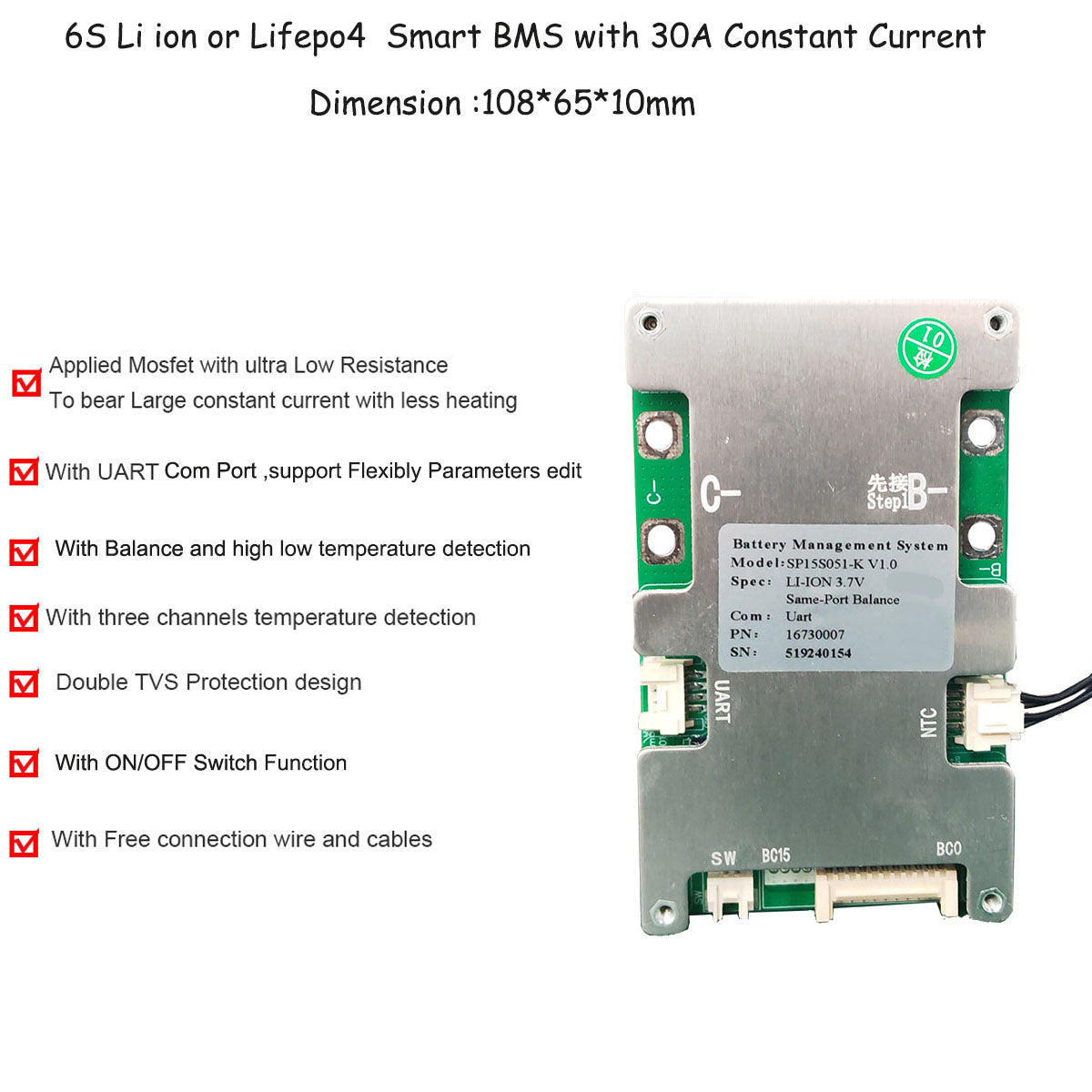

● 6S to 10cell series protection for Lithium Battery pack (10*4.2=42V Lithium Ion Battery ),client can select suitable type based on your battery characteristics( this BMS can be adjusted also for 6S 7S 8S li ion or Lifepo4 Battery with different connection methods provided by us )
● Various protection functions for charging and discharging ( over-charge , over-discharge ,high or Low temperature protection ,over-current protection , short circuit protection etc ) with double layers protection hardware and software protection .
●Precise SOC calculation with SOC function of automatic learning
● Automatically charge battery function or static balance function for the battery system
● Equipped with Bluetooth module with UART which can enable the user to view battery information on our APP or Computer software which can be provided by us .client can use the PC software to set the protection parameters flexibly,client can download software with our appointed link
● With SW Port for output controlling switch ( client needs to activate it if needs this function afterwards via APP or PC software )
● With High and low tempeature detection .
Connection of this BMS :
Notice of connection :
A. Firstly ,Please connect bold wires from B- port of the BMS to the negative port of the battery pack .(B- wire should be as short as possible ) ,then connect these voltage detection wires (Please take off these wires from the BMS before connecting these wires to the battery to avoid any connection mistakes )
B. Second ,Please start connect these balance wires to the Battery system from BC0 ,Black thin wire should be connected to the battery negative , and the second wire -white wire BC1 should be connect to the positive port of the first series cell . BC2 should connect to the positive port of second series cell ,and BC3 wire to the third cell’s positive ….connection in this way in order one by one till to the last cell postive port
C. Third . After connection of these balance wires finished , please measure connector voltage from each Neighbouring wires ,the voltage between each neighbouring wires for Li ion battery should be less than 4V and for Lifepo4 Battery should be less than 3.5V ,after confirmation of these wires connection order , you can plug cable connector into the BMS .–wrong connection order will damage our BMS surely . please be carefully with this step .
D. Finally , connect C- wire as negative of charge and discharge , B+ wire as positive of charge and discharge , those wires should
