xBriefly Introductions :

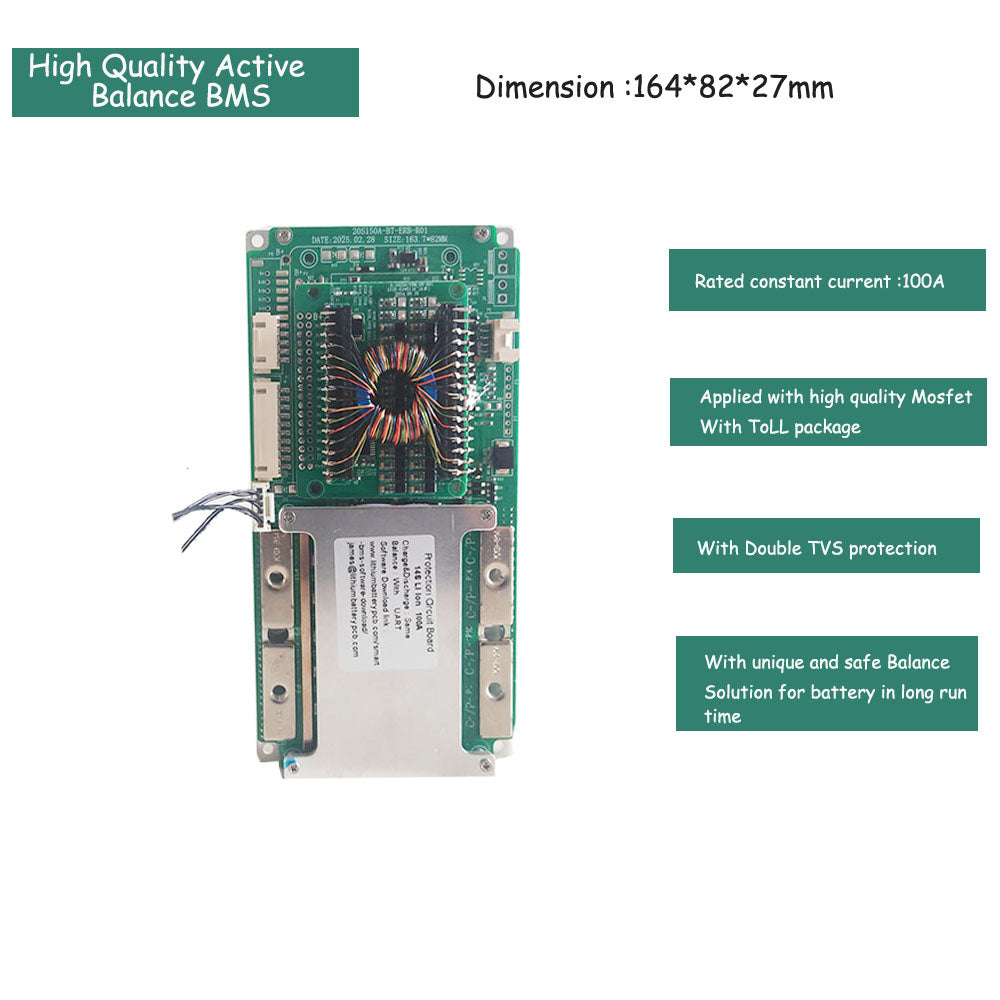

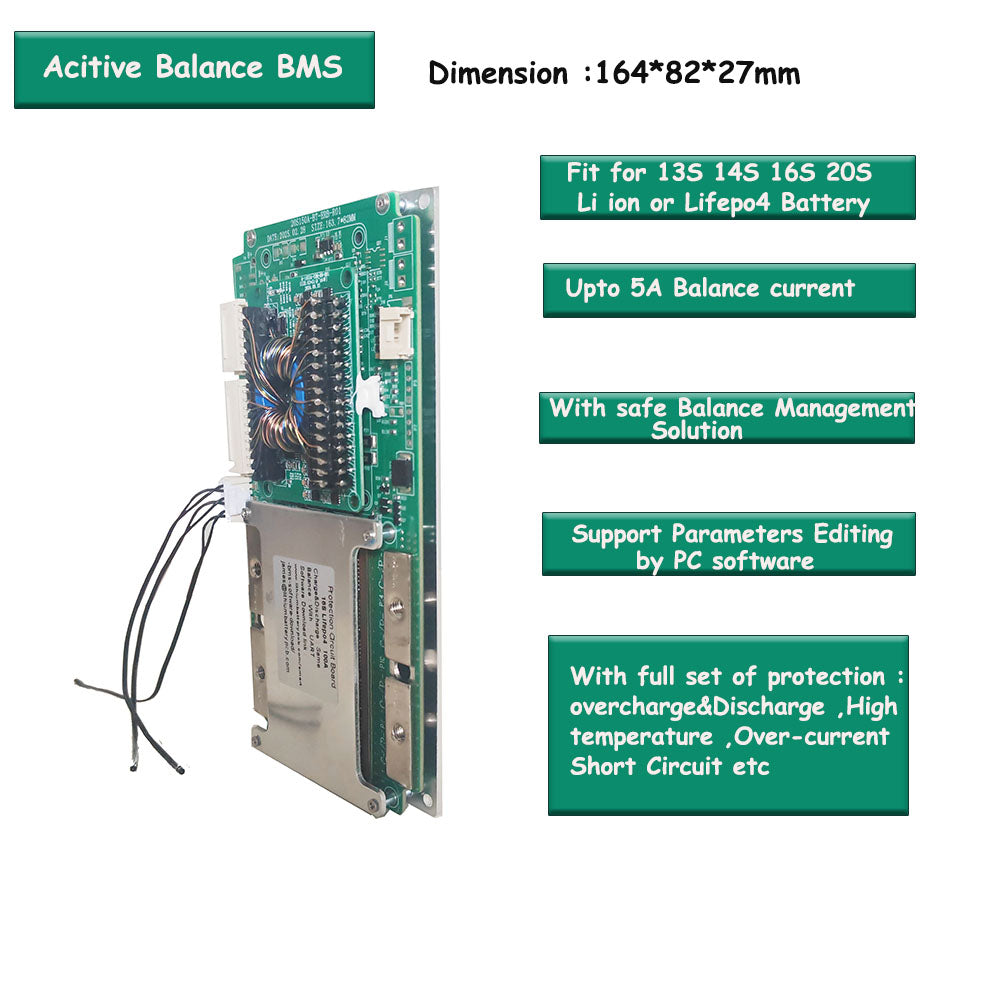

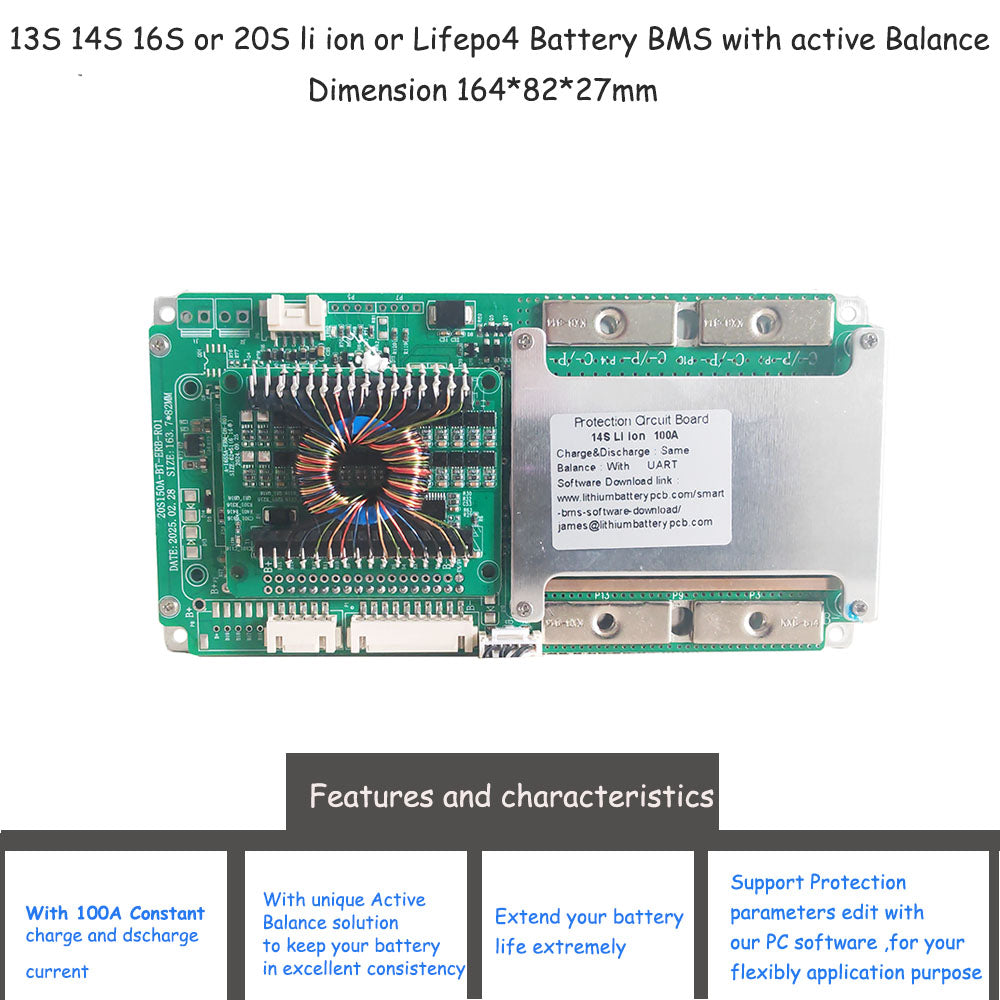

1) Characteristics : This is a active balance BMS with 100A constant current fit with upto 5A Balance current
2) Application : client can select correct parameters based on your battery specification :
13S Li ion 100A for 48V Lithium Battery ,
14S Li ion 100A for 14Series Lithium Battery ,
16S Li ion 100A for 60V Lithium Battery ,16S Lifepo4 100A for 48V Lifepo4 battery
20S Li ion 100A for 72V Lithium Battery ,20S Lifepo4 100A for 60V Lifepo4 battery
3) Dimension :164*82*27mm
4) With the same charge and discharge port and balance functions
5) with highly precision degree on SOC, SOH ,voltage and current metering
6) With full set protection functions :
This BMS has applied with high quality IC chip specially for lithium battery protection purpose .highly detection
precision degree on over-charge,over-discharge,voltage balancing ,and with detection on wires disconnection functions,with three layers of over-discharge and over-current detections and delay times in detecting process.( Over-current 1,over current 2,short cicircuit protection ) . short-circuit of charging port ,with two layers protection against over-voltage when charging :
7) with Three temperature detection channel ( one internal and two external )
And we can design and produce Battery protection circuit board in according to client’s demand with certain reasonable order quantity .for other series application :
8) With Max 5A active balance function ( the bigger voltage difference ,the bigger balance current )
9) Client can use our PC software to edit protection parameters for our BMS without problems .
Specification reference :
