10S 11S 12S 13S 14S 15S 36V 48V 60V BMS with Bluetooth and PC communication APP PCB board of electric bike (Copy)
$0.00

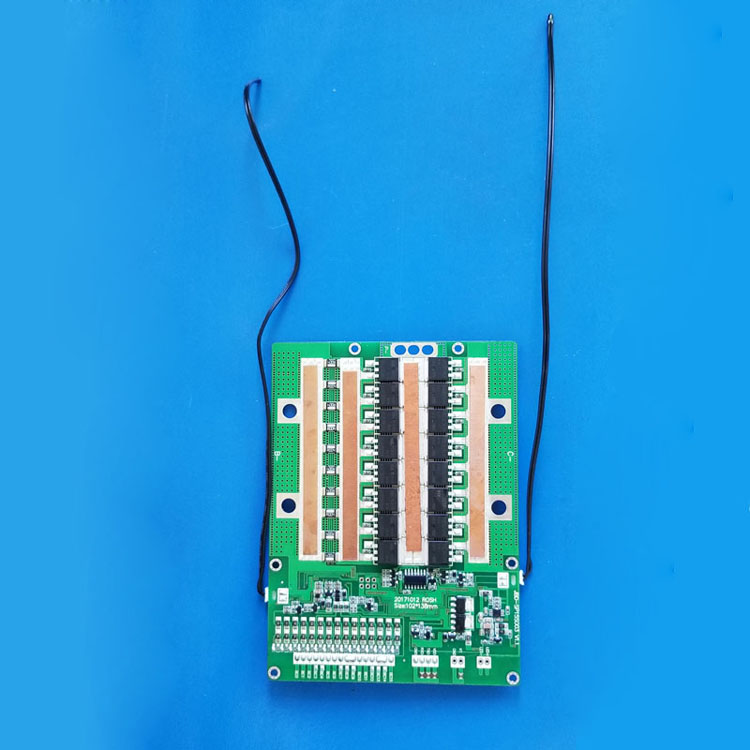

this PCB board can work for 10S 11S 12S 13S 14S or 15S li ion or Lifepo4 Battery with UART communication function[/caption]
\n
\n1) Characteristics : this is a smart BMS with Bluetooth and PC communication which will be used to protect and monitor your battery status visible from the computer and your android APP phone .
\ndischarge current and charging current .the charge and discharge port is same . Size :138*105*15mm
\n2) Protection functions :
\nThis BMS has applied with high quality IC chip specially for lithium battery protection purpose .highly detection
\nprecision degree on over-charge,over-discharge,voltage balancing ,and with detection on wires disconnection functions,
\nwith three layers of over-discharge and over-current detections and delay times in detecting process.( Over-current 1,
\nover current 2,short cicircuit protection ) . short-circuit of charging port ,with two layers protection against over-voltage when charging :
\n3) With Mobile phone operation software systme to manage the detecting the battery working status and some parameters
\nsetting . also this board can be available for the PC operation and Parameters setting on the computer .
\n4) This BMS will includes such list :
\nwith one Bluetooth module for Android system only ,4.3Version Above . with wire and connector for the Battery and
\nSoftware system of mobile phone will be sent to the buyer .
\n5) This BMS has leave a SW swtich for ON/OFF button connection .
\nAnd we can design and produce Battery protection circuit board in according to client's demand with certain
\nreasonable order quantity .
\n
\n
\n
\n
\n
\nA.Mobile Phone APP Display and how to set parameters via APP software with the Bluetooth Communication module as below.
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\nB .With the PC communication Module as Below ,we can set parameter on PC software like this :
\n
\n
\n
\n
\n
\nBMS can be made for different cell's voltage ranges from 10S 36V to 15S at current of 20A to 100A:
\n
\n[caption id="attachment_5703" align="alignnone" width="1000"]
60V li ion Battery smart BMS with 80A or 100A constant current[/caption]
\n
\n
\n
\n[caption id="attachment_5705" align="alignnone" width="1000"]
Smart BMS 13S li ion PCB board[/caption]
\n
\n[caption id="attachment_5707" align="alignnone" width="1000"]
58.8V Li ion Battery BMS with 100A constant current[/caption]
\n
\nFor the connection please take a reference to our other link . thanks
\n
\nReminds : We will send the detail connection drawings to the client with this product if client needs and this BMS will includes all necessories connectors with wire to make sure client can connect it easily . please follow up it correctly to avoid of any mistake ,above connection is only for simple explaination purpose .
\n1)Do not apply the PCB which beyonds the specified criterias as above :
\n2)Sometime , the battery may not discharge when connected this PCB , please connect it to the charge and it can recover to the normal status .
\n3)The PCB may not work normarly When Mixing cells which were over-discharged or over-charged ,
\n4) Do not shock this PCB with big static even though the PCB has been designed with anti-stastic protection function.
\nMy distinuished customers : you can contac us through email or skype if you have any further questions with our product
\nPlease choose the shipment way as you like ,you you can consider express delivery way if your order is urgent , but you
\nshould afford the extra freight cost by express delivery .
\nAs post by air ,usually it takes around 20-60 days ,please notice it and do not open the disputes easily before reaching the
\ncontact with us ,we will try our best to solve the problem with our joint efforts .
\nReturn Policy
\nWe guarantee the product from us with a 12 months warranty against defects in quality, but we are not responsible
\nfor buyers' mistake or wrong handling, our product must be maintained in proper way. If Item is defective and not working
\non arrival, please report the item to us within 7 days of receiving the defective product so we can issue a RMA.
\nPlease contact us to request a return authorization. Please include your name, auction number, and reason for return when you
\ncontact us. All items returned must contain all original packaging materials. Please carefully repack the item. Items returned will
\nbe tested and if found defective, the buyer will be shipped a new replacement unit immediately. In the event that a suitable
\nreplacement is not available a refund will be issued.
\nThe return shipment cost should be afforded by buyer if you can not accept our policy ,please do not buy the item from us ,fair deal is importablefor both of us .Feedback
\nYou satisfaction and positive feedback is very importand to us. Pleae leave positive feedback and 5 stars if you are satisfied with our items and services.
\nIf you have any problems with our itmes or services, please feel free to contact us first before you leave negative feedback. We will do our best to solve any problems and provide you with the best customer services.
