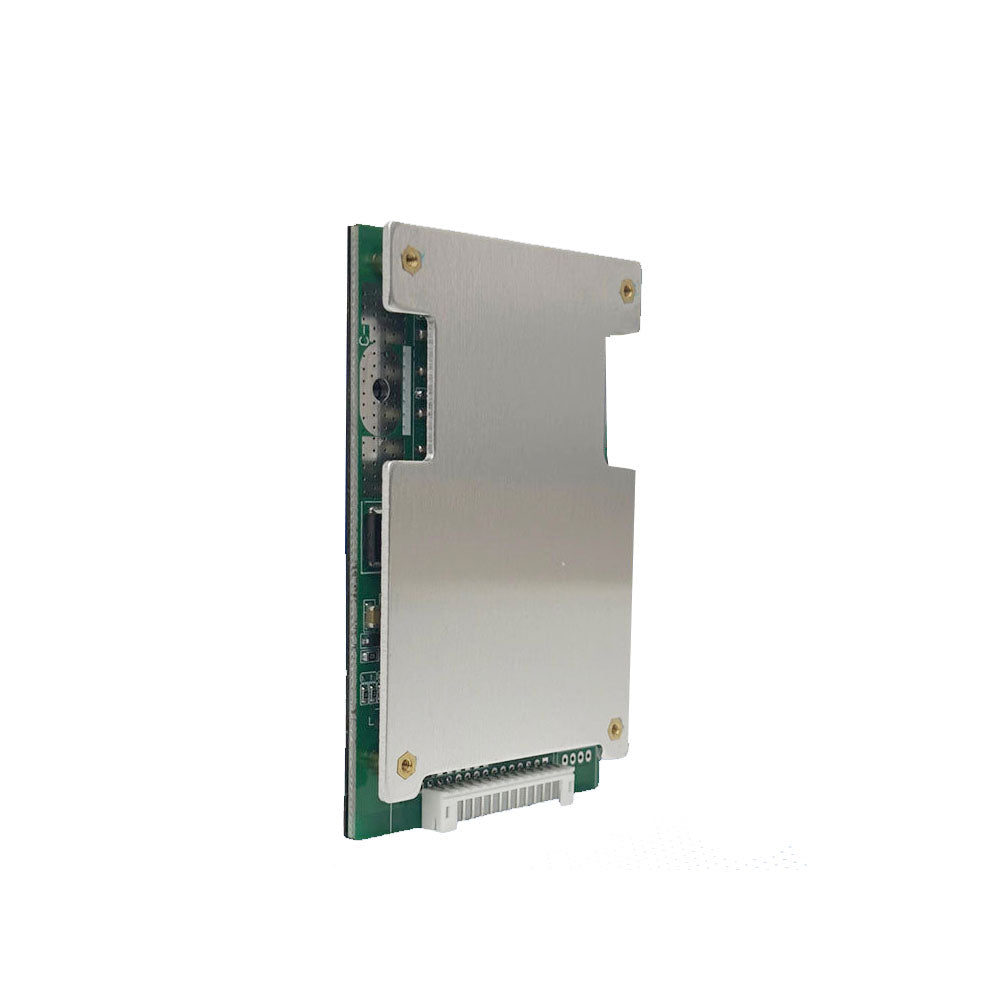

10S 13S 14S Li ion or 16S li ion and Lifepo4 Battery BMS for 36V 48V 60V Battery with 30A or 50A Constant current with ON OFF switch
$17.20

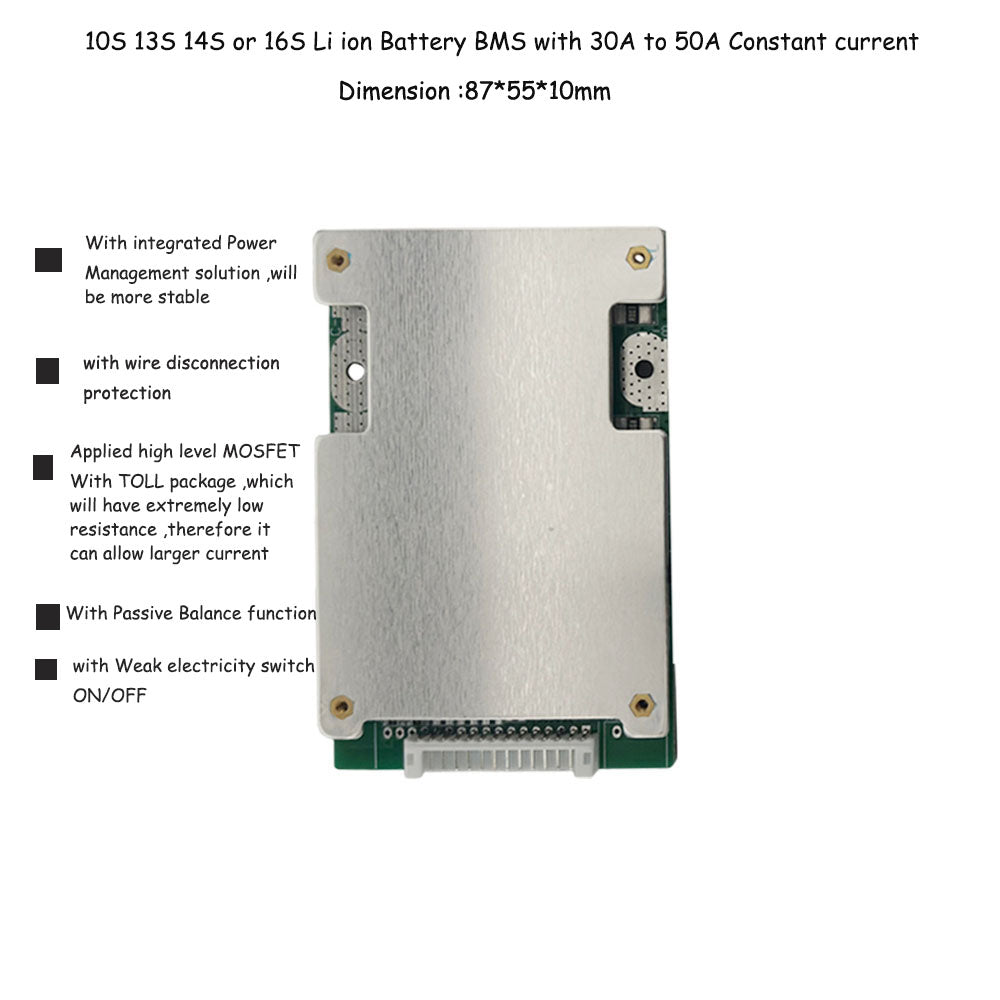

• For 10S 13S 14S 16S li ion or Lifepo4 Battery Application . • charge and discharge port : same or Different
• Dimension :87*55*10mm • With High temperature detection function
• With full set of protection functions : such as Over-charge and over-discharge protection , over-current protectiton , short circuit protection ,temperature protection • with integrated management solution to provide stable performance
• Constant current : 30A or 50A
• With weak electricity switch ON/OFF function
.Parameters reference :
|
Constant discharge current: |
30A or 50A ( client can select it ) |
Short circuit protection | External short / release it by disconnect the external short will recover |
| charge voltage | 4.2V* battery series CV to CC 3.65V* battery series for Lifepo4 | High temperature protection | 55 degree with charge
75 degree with discharge |
| Charge current |
Same port BMS of 30A ： less than 15A Same port BMS of 30A : less than 25A |
Current consumption | stand-by : 10uA In working status : less than35uA |
| Over-current protection | 30A BMS with 100±15A overcurrent protection 50A BMS with 200±20A Overcurrent protection | Balance | 42±5mA |
| Overcharge protection cut-off voltage with single cell | Li ion: 4.25V±0.025V Lifepo4 :3.65±0.025V | ||
| Overdischarge cut-off voltage with single cell | Li ion :2.75V ±0.1V Lifepo4:2.35±0.1V | ||
| Overdischarge release voltage | Li ion :3.0V ±0.05V Lifepo4:2.5V ±0.05V | ||
| Dimension | 87*55*10mm |
