smart active balancer BMS and Active balance bms for 36V 48V 60V 72V Li ion or Lifepo4 battery active balance bms with 5A equalization current

smart active balancer BMS and Active balance bms for 36V 48V 60V 72V Li ion or Lifepo4 battery active balance bms with 5A equalization current

$53.20
Specification
Briefly Introductions :

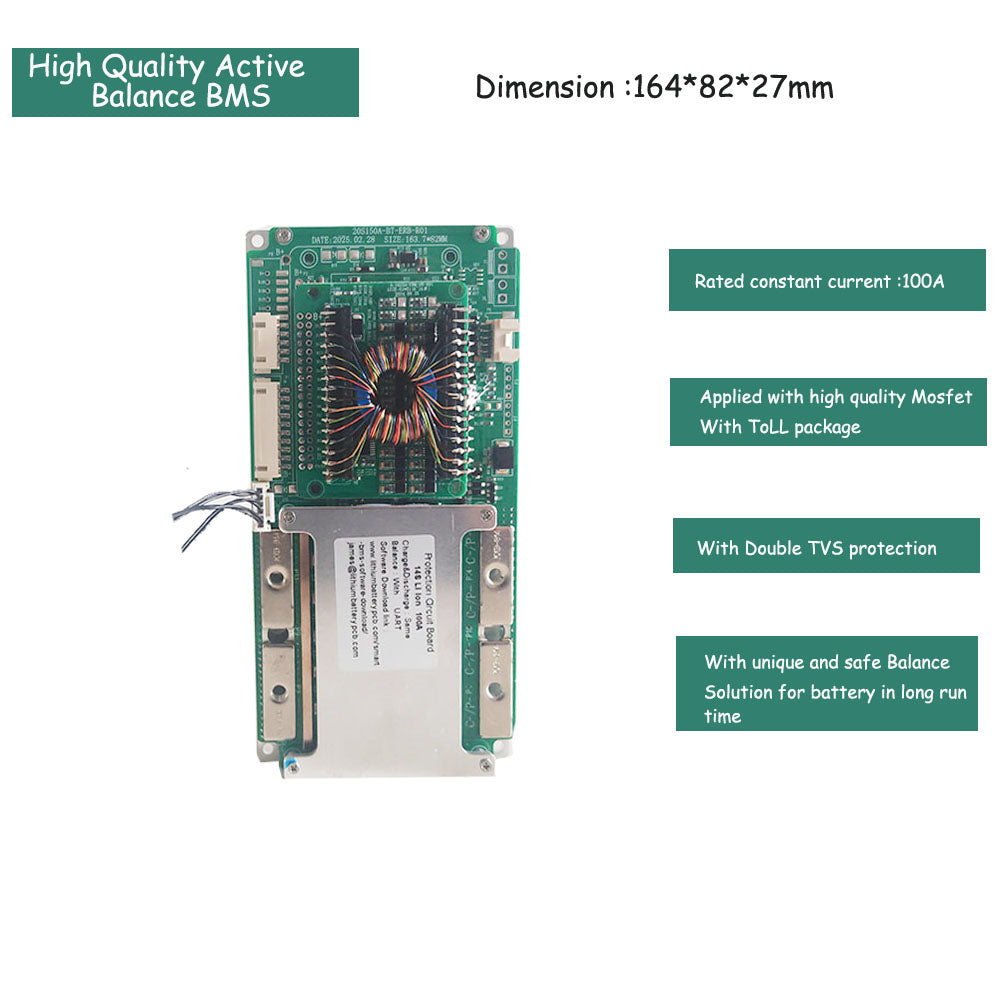

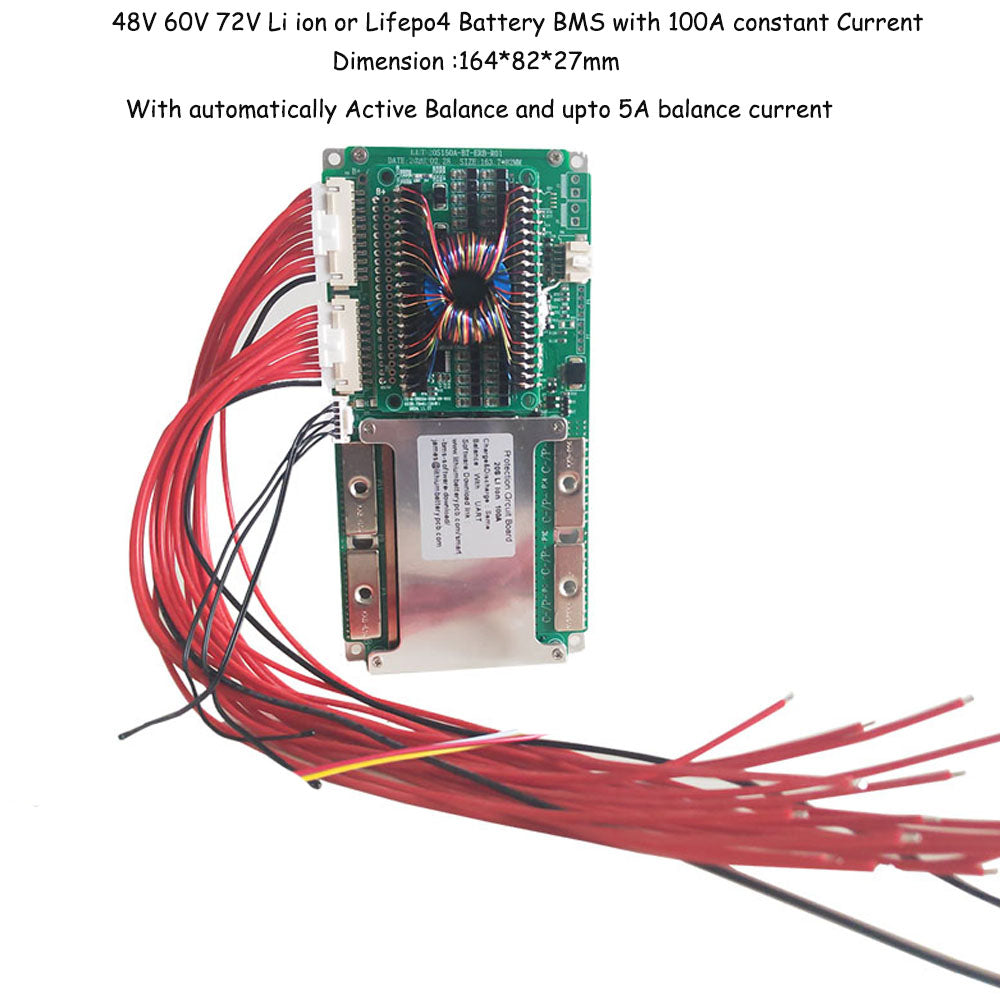

 1) Characteristics : This is a active balance  BMS with 100A constant current with upto 5A balance current .

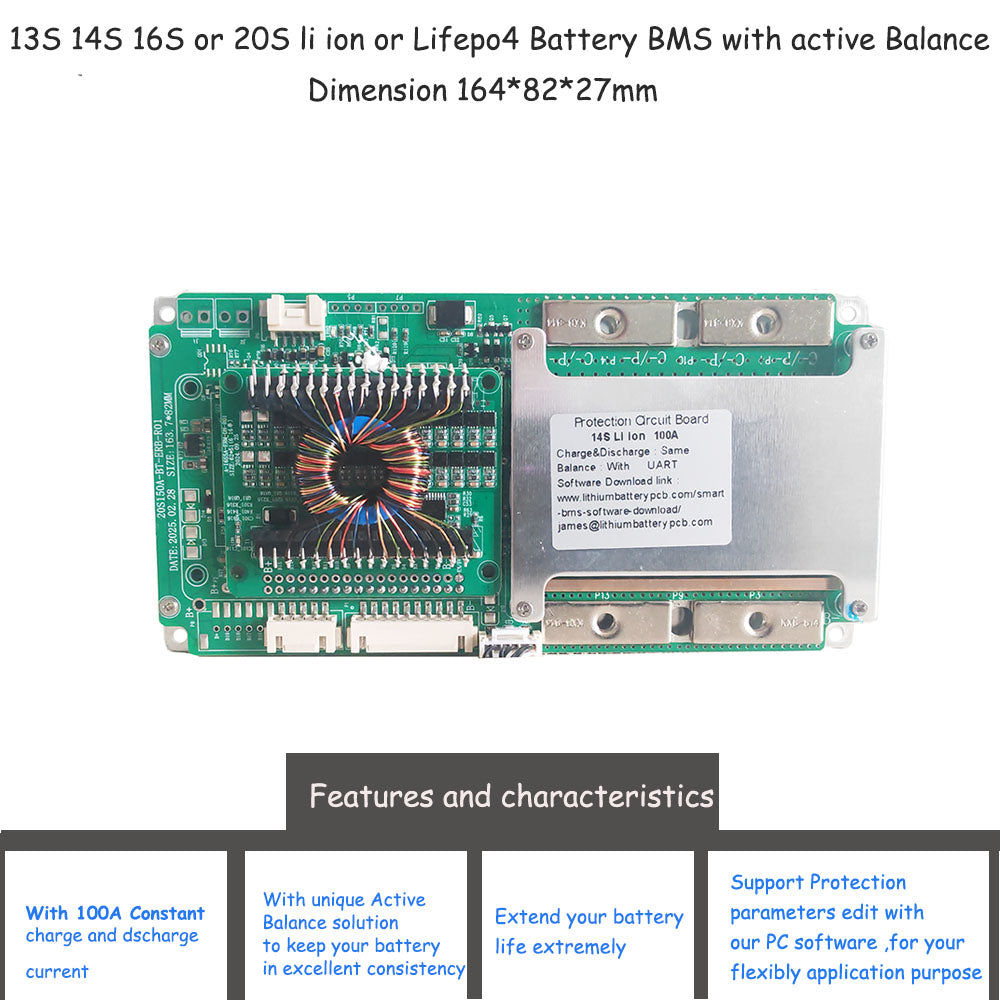

 2) Application : client should select suitable prameters based on your battery specification . 13S li ion , 14S li ion ,16S li ion or lifepo4 battery 20S li ion or lifepo4 battery( 13S li ion for 48V Lithum Battery , 16S Li ion for 60V Li ion battery , 16S Lifepo4 for 48V Lifepo4 battery , 20S li ion for 72V Lithium battery ,and 20S Lifepo4 for 60V Lifepo4 battery system )

3) Dimension :164*82*27mm

4) With the same charge and discharge port and balance functions

5) with highly precision degree on SOC, SOH ,voltage and current metering

6) With full set protection functions :

This BMS has applied with high quality IC chip specially for lithium battery protection purpose .highly detection

precision degree on over-charge,over-discharge,voltage balancing ,and with detection on wires disconnection functions,with three layers of over-discharge and over-current detections and delay times in detecting process.( Over-current 1,over current 2,short cicircuit protection ) . short-circuit of charging port ,with two layers protection against over-voltage when charging :

7) with Three temperature detection channel ( one internal and two external )

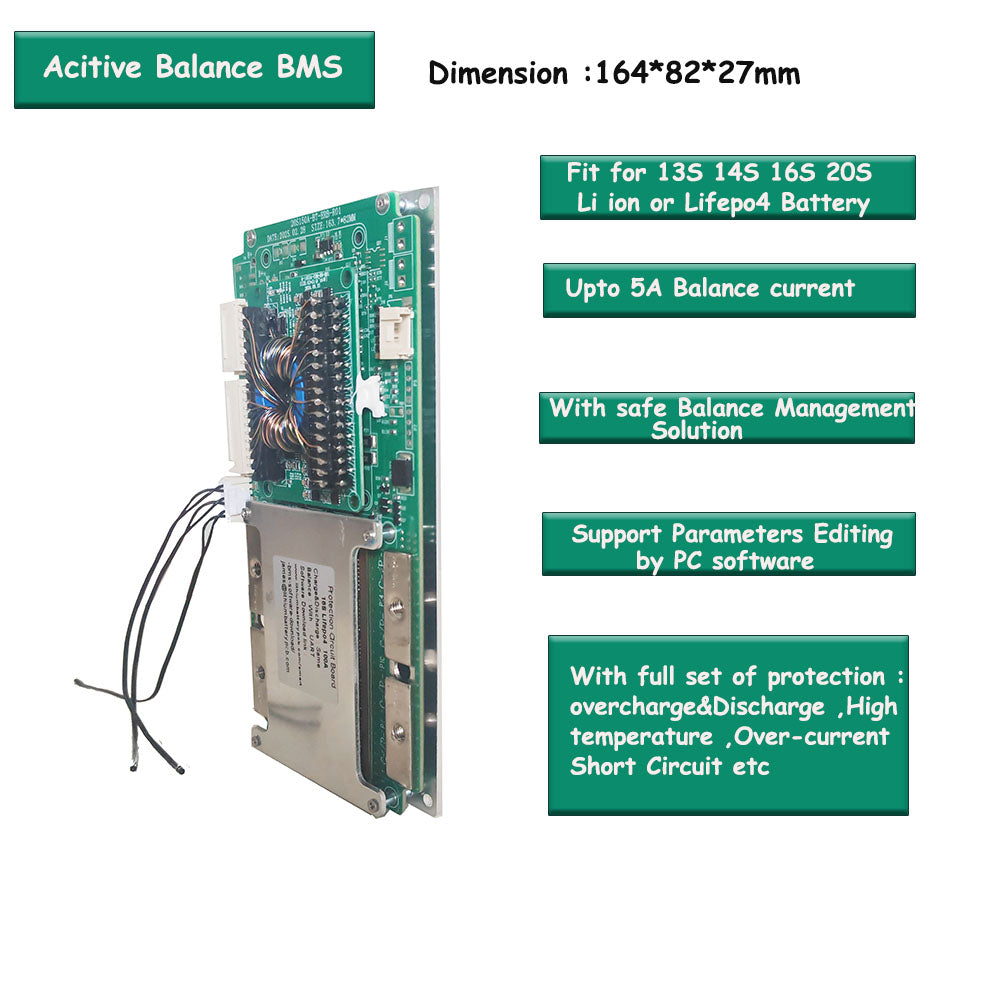

8) With Max 5A active balance function ( the bigger voltage difference ,the bigger balance current, BMS can adjust it smartly and safely in according to your battery conditions )

9) App will be used for monitor purpose and if you need to edit parameters , please use the PC communication module (regular UART~TTL PC adapter will be ok ) to edit it .
